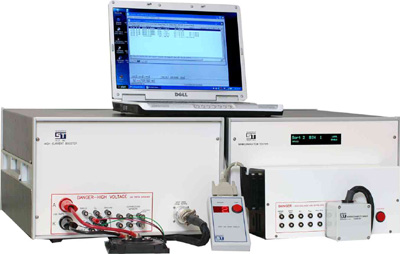

STI5300C tester is an intelligent testing system for power discrete devices. The STI5300C series products of American STI Company are a very international advanced tester, with a wide test range covering almost all diodes, LEDs, triodes and power tubes.

STI is a professional testing instrument for diodes, IGBTs, Mosfet optocouplers and other separation devices, providing 2000V, 3600V high-voltage, 1200A large current testing solutions;

The STI5300C product is easy to use. It only needs to be connected to the computer through USB or 232 and operated through the friendly human-computer interface in the computer to complete the test. The test data can be saved in EXCEL format.

STI5300C Other test items:

Diode Zener

3. Transistor (NPN type/PNP type)

4. SCR of silicon controlled rectifier (common thyristor)

5. Bidirectional thyristor TRIAC

6. MOSFET Power MOSFET (N-channel/P-channel)

7. Junction FET J-FET (N-channel/P-channel, depleted/enhanced)

8. Three terminal regulator REGULATOR (positive voltage/negative voltage, fixed/variable)

9. Insulated gate bipolar high-power transistor IGBT (NPN type/PNP type)

10. Opto coupler (NPN type/PNP type)

11. Opto logic device OPTO-LOGIC

12. OPTO-SWITCH

13. Darlington Array

14. Solid state overvoltage protector SSOVP

15. Silicon trigger switch STS

16. Relay RELAY (Type A, B, C)

17. Metal oxide varistor MOV

18. Varistor

19. Bidirectional trigger diode DIAC

Main models of ST5300HX tester:

ST1005HX 1000V 50A;

ST2005HX 2000V 50A;

ST2010HX 2000V 100A;

ST2050HX 2000V 500A;

ST2100HX 2000V 1000A;

ST2120HX 2000V 1200A; 10V@1200A ；

ST-1000LC 1pA leakage

Diode test items include: static parameters such as IR, BVR, VF, etc., as well as observation of diode characteristic curve.

IGBT test items include: ICES, IGESF, IGESR, BVCES, VGETH, GFE, VCESAT, ICON, RDSON, VGEON, VF and other static parameters

QC/FT/CP/FA of electronic manufacturers,,

ST5300HX Discrete Device Tester Solution:

Technical parameters and achievable goals

Main pole voltage: 1000V Optional: 2000V, 3600V

Main pole current: 50A Optional: 100A, 500A, 1000A, 1200A

Control pole voltage: 20V Optional: 80V

Control electrode current: 10A Optional: 40A

Voltage resolution: 1mV

RDSON resolution: 0.001 mOHM

Current resolution: 100pA Optional: 1pA
